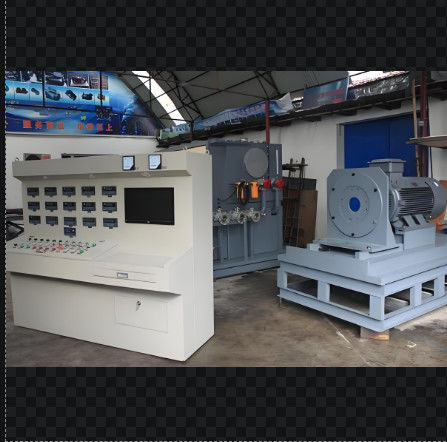

Comprehensive Hydraulic pump repairing test bench

Comprehensive Hydraulic test bench

for repairing or manufacturing pump/motor/ cylinder,

It  tests  hydraulic pumps (open, closed, double open pump), hydraulic motors (high speed) , and auxiliary test hydraulic cylinders and valves.

II. , Test Items:

1, displacement test: no-load pressure, discharge measurement.

2, volume efficiency test: the volume measurement efficiency under rated operating conditions,

3, power test: start power, rated power, overload power.

4, overload test: maximum displacement of hydraulic pump or motor (high speed), nominal speed, rated pressure of 110% or the maximum pressure of running for 1 minutes or less.

5, torque test: input torque of hydraulic pump, shaft end torque of hydraulic motor (reverse test)

6, external leakage test: in the above test, check the leakage. of the sealing parts.

7, Auxiliary test for hydraulic valve and hydraulic cylinder, etc..


III. Function and parameters of the test bench

1, drive mode: motor drive, power 110kw+22KW+22KW+0.75KW

2, speed mode: frequency control 0-3000r/min.

3, loading mode: computer proportional relief valve double-way loading 40MPa. Able to test duplex pump.

4, the maximum flow rate: <= 500L/min

The maximum flow rate of low-pressure auxiliary system <= 330L/min 5,
the maximum pressure auxiliary system: 35MPa

6. The maximum flow rate of high pressure auxiliary system 34L/min,
the maximum pressure auxiliary system: 31.5MPa

7, temperature range for test bench: 0-60ºC

8,  with air-cooling  radiator

9, power requirements: AC380V 300A

10, sensors and control power supply: DC24V

11, the computer automatically generates test reports, curves, data acquisition and print output.

12, display mode: digital display of speed, flow, pressure, torque.
Oil supply: self priming and forced oil supply.

13, test components: mainly test open hydraulic pump, double open pump, closed pump, high speed hydraulic motor. Assist in testing hydraulic valves, hydraulic cylinders, etc..

14, Able to test both clockwise rotation andcounterclockwise rotation;

15, with a oil filter for recycle the leaked oil

16, 4 -grade filter with alarm function.

17,oil tank volume:  according to the customers' request

18, the supplier is responsible for equipment installation and commissioning

Example of  configuration
