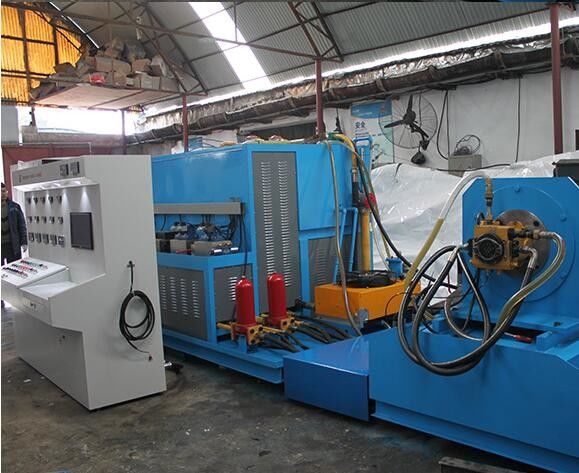

High Precision Hydraulic Motor Test Stand for Industrial Applications

Hydraulic Pump Test Stand with 75-160 KW Electric Motor

Product Description:

One of the key features of our hydraulic pump test stand is its customizable oil tank volume. We understand that different customers have different needs, which is why we offer a range of oil tank volumes to choose from.

In addition, this hydraulic test bench comes equipped with a computer for easy operation and data analysis. This makes it a highly efficient and user-friendly testing tool.

The maximum pressure auxiliary system of our hydraulic pump test stand is 35MPa, making it capable of handling high-pressure testing requirements with ease. Additionally, this hydraulic test bench comes equipped with an oil filter for recycling leaked oil, ensuring that the testing process is safe and environmentally friendly.

Our hydraulic pump test stand is capable of performing a variety of tests, including:

• Displacement test: no-load pressure, discharge measurement
• Volume efficiency test: the volume measurement efficiency under rated operating conditions
• Power test: start power, rated power, overload power
• Overload test: maximum displacement of hydraulic pump or motor (high speed), nominal speed, rated pressure of 110% or the maximum pressure of running for 1 minute or less
• Torque test: input torque of hydraulic pump, shaft end torque of hydraulic motor (reverse test)
• External leakage test: in the above tests, check the leakage of the sealing parts
• Auxiliary test for hydraulic valve and hydraulic cylinder, etc.

Overall, our hydraulic pump test stand is the perfect tool for any hydraulic testing need. Its customizable oil tank volume, computer operation, and variety of testing capabilities make it a highly efficient and user-friendly hydraulic test bench. Invest in our hydraulic pump test stand today and take the first step towards efficient and effective hydraulic testing.

Features:

• Product Name: hydraulic pump test stand
• Maximum Flow Rate: <= 500L/min
• Maximum Pressure Auxiliary System: 35MPa
• Oil Tank Volume: according to the customers' request
• Oil Supply: self priming and forced oil supply
• Speed Mode: frequency control 0-3000r/min

Technical Parameters:

Applications:

With a maximum pressure auxiliary system of 35MPa and a speed mode that allows for frequency control of 0-3000r/min, this hydraulic test bench is designed to provide accurate, dependable results every time. The driving motor ranges from 75kw to 160kw, ensuring that the test stand can handle even the toughest jobs with ease.

Thanks to its computer proportional relief valve double-way loading system with a maximum loading capacity of 40MPa, this hydraulic pump test stand can be used to test both clockwise and counterclockwise rotation, making it a versatile and valuable asset for any hydraulic business.

Whether you need to test duplex pumps or other hydraulic components, this hydraulic test stand is up to the task. And with a minimum order quantity of just one, you can get started with this powerful tool right away. Pricing starts at USD 25000 and ranges up to USD 70000, depending on your specific needs.

Payment terms are T/T, and supply is limited to one unit per month, so be sure to order early to ensure timely delivery. The delivery time ranges from 15-60 days, and the packaging details include film for added protection during shipping.

Overall, the yizhi YT500 hydraulic test stand is an essential tool for any business that works with hydraulic systems. With its powerful capabilities and reliable performance, it is sure to become a valuable asset for your team.

Support and Services:

Our hydraulic pump test stand product comes with a comprehensive technical support package to ensure optimal performance and reliability. Our team of experienced technicians is available to provide expert advice and guidance on installation, operation, and maintenance of the test stand.

We also offer a range of services to support our customers, including onsite training, troubleshooting and repair, and preventative maintenance programs. Our goal is to help our customers maximize the value of their investment by ensuring the test stand is running at peak performance and minimizing downtime.

FAQ:

Q1. What is the brand name of this hydraulic pump test stand?

A1. The brand name of this hydraulic pump test stand is yizhi.

Q2. What is the model number of this hydraulic pump test stand?

A2. The model number of this hydraulic pump test stand is YT500.

Q3. Is this hydraulic pump test stand certified?

A3. Yes, this hydraulic pump test stand is CE certified.

Q4. Where is this hydraulic pump test stand manufactured?

A4. This hydraulic pump test stand is manufactured in China.

Q5. What is the minimum order quantity for this hydraulic pump test stand?

A5. The minimum order quantity for this hydraulic pump test stand is 1 unit.

Q6. What is the price range of this hydraulic pump test stand?

A6. The price range of this hydraulic pump test stand is USD 25000--70000.

Q7. What are the payment terms for this hydraulic pump test stand?

A7. The payment terms for this hydraulic pump test stand are T/T.

Q8. What is the supply ability of this hydraulic pump test stand?

A8. The supply ability of this hydraulic pump test stand is 1 unit per month.

Q9. What is the delivery time for this hydraulic pump test stand?

A9. The delivery time for this hydraulic pump test stand is 15-60 days.

Q10. What are the packaging details for this hydraulic pump test stand?

A10. The packaging details for this hydraulic pump test stand are film.
