Product Details
Place of Origin: Shandong Province of China
Brand Name: YiZhi
Certification: CE / ISO
Model Number: YST380
Payment & Shipping Terms
Minimum Order Quantity: 1 unit
Price: USD 20000--60000
Packaging Details: film
Delivery Time: 50 days
Payment Terms: T/T
Supply Ability: 1 unit per 50 days
Product Name: |
Hydraulic Pump Test Bench |
Driving Power: |
75-160KW |
Purpose: |
For Repairing Hydraulic Pumps And Motors |
Rotation Speed: |
0-3000 R/min Through Frequency Control |
Pressure Loading: |
31Mpa --42Mpa |
Flow: |
≦ 500L/min |
Display Mode: |
Digital Display Of Speed, Flow, Pressure, Torque. Oil Supply: Self Priming And Forced Oil Supply. |
Oil Supply:: |
Self Priming And Forced Oil Supply. |
Cooling Method: |
Air-cooled Radiator |
Ememergency Stop Protection: |
Yes |
Warranty: |
1 Year |
Printing Of Test Report: |
Yes |
Product Name: |
Hydraulic Pump Test Bench |
Driving Power: |
75-160KW |
Purpose: |
For Repairing Hydraulic Pumps And Motors |
Rotation Speed: |
0-3000 R/min Through Frequency Control |
Pressure Loading: |
31Mpa --42Mpa |
Flow: |
≦ 500L/min |
Display Mode: |
Digital Display Of Speed, Flow, Pressure, Torque. Oil Supply: Self Priming And Forced Oil Supply. |
Oil Supply:: |
Self Priming And Forced Oil Supply. |
Cooling Method: |
Air-cooled Radiator |
Ememergency Stop Protection: |
Yes |
Warranty: |
1 Year |
Printing Of Test Report: |
Yes |

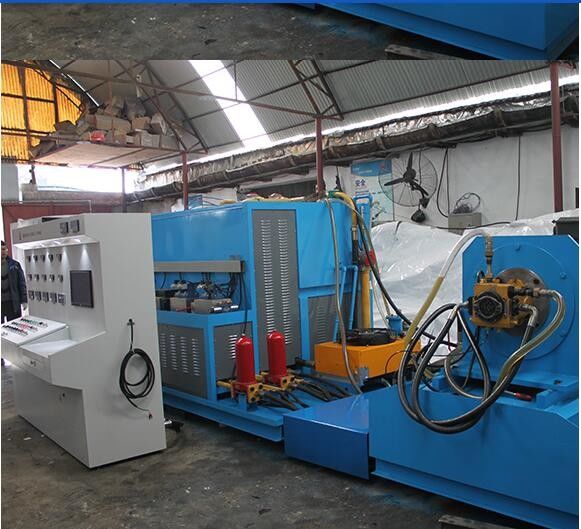

Hydraulic Pump Test Bench
Function configuration and parameters of test bench:
the hydraulic comprehensive test bench can test the following components:
Mainly test: single and double hydraulic pumps; Open and close hydraulic pumps; Low speed hydraulic motor loading test; High speed hydraulic motor (pump working condition test); Ultra high pressure and low flow test.
Driving mode: electric motor output power 160kW; Speed 0-2000r / min
Loading mode: Pump (motor) loading: dual way loading of proportional relief valve, maximum 45MPa
oil supply mode: two way low pressure oil pump supply `oil: 300 L / min (0-3 MPa) or Self-priming oil supply;
High pressure oil supply: 16L / min 0-30mpa
Data display mode: mechanical meter (pressure) digital display instrument (flow, speed, current, voltage) PLC display 19 inch screen
1) Flow and pressure: digital display L / min, MPa;
3) The liquid level is directly displayed by the liquid level meter;
4) If the filter element is blocked and the filter is replaced, the red light will give an alarm;
5) Speed and temperature are displayed by digital display meter.
working medium: isovg46 hydraulic oil
Tank volume: 1000L, actual refueling 900l-950l
main pump platform: 2500mm long × Width 2100mm × Height 2000mm
Motor driving table: 2100mm long × 1550mm wide × 1600mm high
Control counter: 2030mm long × Width 800mm × 1800mm high
Main configuration
| No. | Description | Mode; | Qty | |
| 1 | Main electric driving Motor | 160kw | 1 | |
| 2 | Motor | 22 kw＋75kw | 3 | |
| 3 | Control cabinet + frequency converter | 1set | ||
| 4 | Direct acting relief valve | 2 | ||
| 5 | Proportional relief valve | 6 | ||
| 6 | Check valve | 5 | ||
| 7 | Directional valve | 1 | ||
| 8 | Return oil filter | 10u | 3 | |
| 9 | Suction filter | 100u | 3 | |
| 10 | Integrated block | 4 | ||
| 11 | Oil tank and accessory pipeline | 1set | ||
| 12 | flow sensor | 5sets | ||
| 13 | Digital display instrument | 9sets | ||
| 14 | Hydraulic pump | 200/200/16 | 3 | |
| 15 | ball valve | 10 | ||
| 16 | hydraulic hose | 1 set | ||
| 17 | Hydraulic pump motor test bench | 1set | ||
| 18 | Main station, auxiliary station | 1set | ||
| 19 | Pressure gauge | 12 | ||
| 20 | Voltmeter and ammeter | 2 | ||
| 21 | Other accessories | 1batch | ||
| 22 | Flowmeter | 2 | ||
| 23 | Flowmeter | 1 | ||
| 24 | Oil filter | 1 | ||
| 25 | Ultra high pressure flowmeter | 2 | ||
| 27 | Computer | 1 | ||
| 28 | Siemens PLC | 1set | ||
