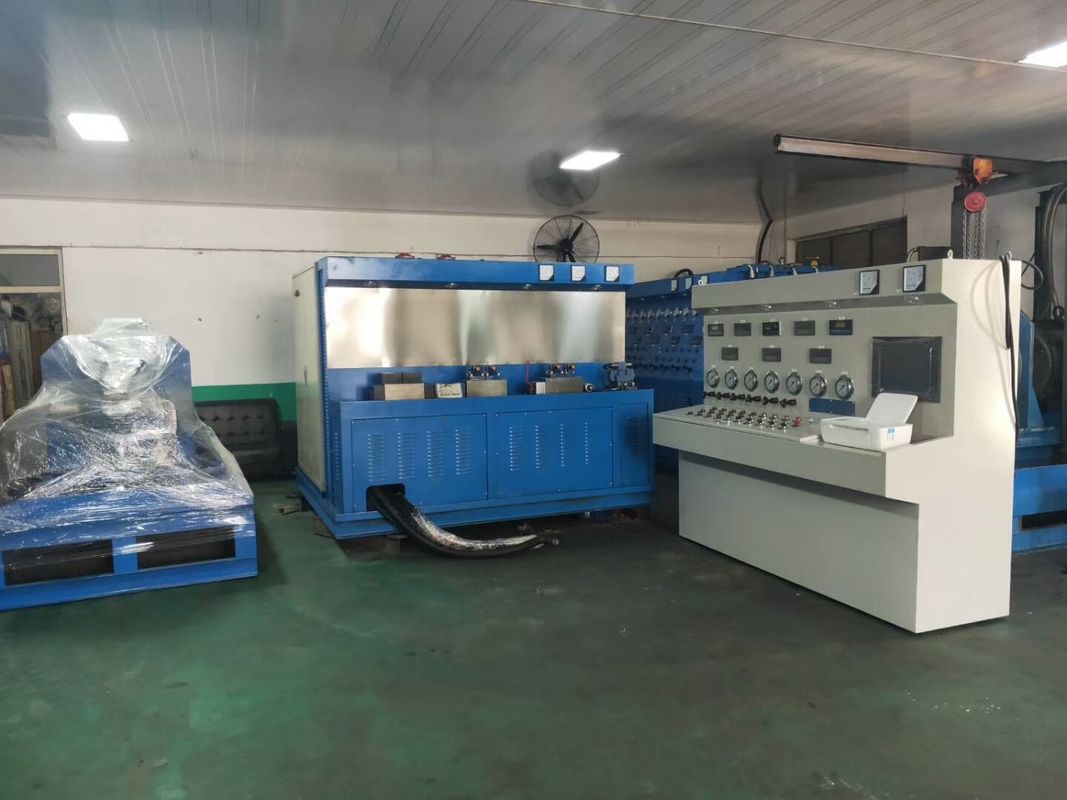

CE Certification Hydraulic Test Bench with User-Friendly Data Collection System

Hydraulic Pump Test Platform

Test Items:

1. Displacement test: Measuring no-load pressure and discharge.

2. Volume efficiency test: Measuring the volume efficiency under rated operating conditions.

3. Power test: Start power, rated power, and overload power.

4. Overload test: Maximum displacement of the hydraulic pump or motor (at high speed), nominal speed, rated pressure of 110% or the maximum pressure for running for 1 minute or less.

5. Torque test: Input torque of the hydraulic pump, shaft end torque of the hydraulic motor (reverse test)

6. External leakage test: During the above tests, check the leakage of the sealing parts.

7. Auxiliary tests for hydraulic valves and hydraulic cylinders, etc.

IV. Function and Parameters of the Test Bench

1. Drive mode: Motor-driven, with power of 110kW + 22kW + 22kW + 0.75kW

2. Speed mode: Frequency control ranging from 0 to 3000 r/min.

3. Loading mode: Computer proportional relief valve for two-way loading up to 40 MPa. Capable of testing duplex pumps.

4. Maximum flow rate: ≤ 500 L/min. The maximum flow rate of the low-pressure auxiliary system ≤ 330 L/min

5. Maximum pressure of the auxiliary system: 35 MPa

6. Maximum flow rate of the high-pressure auxiliary system 34 L/min, maximum pressure of the auxiliary system: 31.5 MPa

7. Temperature range for the test bench: 0 - 60℃

8. Medium temperature with natural cooling.

9. Power requirements: AC380V 300A

10. Sensors and control power supply: DC24V

11. The computer automatically generates test reports, curves, and data acquisition
