Product Details
Place of Origin: Shandong Province of China
Brand Name: YiZhi
Certification: CE / ISO
Model Number: YST380
Payment & Shipping Terms
Minimum Order Quantity: 1 unit
Price: USD 20000--60000
Packaging Details: film
Delivery Time: 50 days
Payment Terms: T/T
Supply Ability: 1 unit per 50 days
Product Name: |
Hydraulic Pump Test Bench |
Driving Power: |
75-160KW |
Purpose: |
For Repairing Hydraulic Pumps And Motors |
Rotation Speed: |
0-3000 R/min Through Frequency Control |
Pressure Loading: |
31 Mpa --42Mpa |
Flow: |
≦ 500L/min |
Display Mode: |
Digital Display Of Speed, Flow, Pressure, Torque. Oil Supply: Self Priming And Forced Oil Supply. |
Oil Supply:: |
Self Priming And Forced Oil Supply. |
Cooling Method: |
Air-cooled Radiator |
Ememergency Stop Protection: |
Yes |
Warranty: |
1 Year |
Printing Of Test Report: |
Yes |
Product Name: |
Hydraulic Pump Test Bench |
Driving Power: |
75-160KW |
Purpose: |
For Repairing Hydraulic Pumps And Motors |
Rotation Speed: |
0-3000 R/min Through Frequency Control |
Pressure Loading: |
31 Mpa --42Mpa |
Flow: |
≦ 500L/min |
Display Mode: |
Digital Display Of Speed, Flow, Pressure, Torque. Oil Supply: Self Priming And Forced Oil Supply. |
Oil Supply:: |
Self Priming And Forced Oil Supply. |
Cooling Method: |
Air-cooled Radiator |
Ememergency Stop Protection: |
Yes |
Warranty: |
1 Year |
Printing Of Test Report: |
Yes |

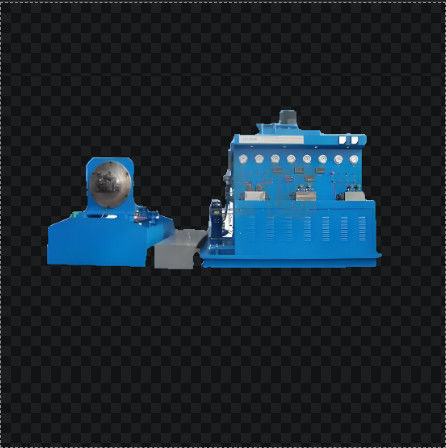

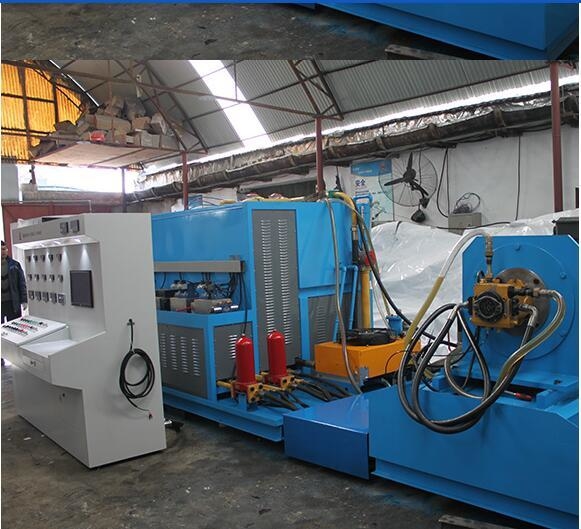

Comprehensive-function Hydraulic Pump / Motor Test bench
with computer, print test report. 31.5--42Mpa presssure range
Rotation Speed: 0-300 r/ min
With air cooling radiator
With CE certification
Driving Motor: 75kw, 90 kw, 110 kw, 132kw, 160 kw
configuration Example
| No. | Name |
Model or Specification |
Qty | ||
|
1
|
Electric motor | 160kw | 1 | ||
| 2 | Electric motor | 5.5kw | 2 | ||
| 3 | Electric motor | 0.75kw |
3
|
||
|
4
|
Power Control cabinet |
200KW |
1 set |
||
|
5 |
Cantilever control box |
1
|
|||
| 6 | Oil suction pump | 0.75kw | 1 | ||
| 7 | Relief valve | 14 | |||
| 8 | One-way valve |
11
|
|||
| 9 | Reversing valve | 1 | |||
| 10 |
Oil-return filter
|
2 | |||
| 11 | Oil absorbing filter |
5
|
|||
| 12 | Air filter |
|
|||
| 13 | Liquid level indicator | ||||
| 14 | Hydraulic valve block |
2
|
|||
| 15 | Oil tank and hoses | 1 set | |||
| 16 | Flow sensors | 4 | |||
| 17 | Digital meters | 7 | |||
| 18 | Frequency converter | 160kw | 1 set | ||
|
19 |
Hydraulic pumps |
Rexroth A2F10 |
1 |
||
| Vane pump | 1 | ||||
|
gear pump
|
2
|
||||
| Hydraulic motor | Rexroth A2FE160 | 1 | |||
| 20 | Proportional controller | 1 | |||
| 21 |
Ball Valve |
High pressure | 3 | ||
| Low pressure | 3 | ||||
| 22 | Hydraulic hose | 1 set | |||
| 23 |
Electromagnetic ball valve
|
4 | |||
| 24 | Touch screen computer | 1 | |||
| 25 | HP brand Printer |
1
|
|||
| 26 | Temperature sensor | 1 | |||
| 27 | Speed sensor |
2
|
|||
| 28 | Pressure sensor | 7 | |||
| 29 | Water cooling radiator |
Buyer self prepare water pump and water tank
|
1 | ||
| 30 | AC contactor | 6 | |||
| 31 | Miniature circuit breaker | 5 | |||
| 32 |
Siemens Integration module
|
|
3 |
||
| 33 | Siemens PLC |
|
1 | ||
