Product Details
Place of Origin: Shandong Province of China
Brand Name: YiZhi
Certification: CE / ISO
Model Number: YST380
Payment & Shipping Terms
Minimum Order Quantity: 1 unit
Price: USD 20000--60000
Packaging Details: film
Delivery Time: 50 days
Payment Terms: T/T
Supply Ability: 1 unit per 50 days
Product Name: |
Hydraulic Pump Test Bench |
Driving Power: |
75-160KW |
Purpose: |
For Repairing Hydraulic Pumps And Motors |
Rotation Speed: |
0-3000 R/min Through Frequency Control |
Pressure Loading: |
31 Mpa --42Mpa |
Flow: |
≦ 500L/min |
Display Mode: |
Digital Display Of Speed, Flow, Pressure, Torque. Oil Supply: Self Priming And Forced Oil Supply. |
Oil Supply:: |
Self Priming And Forced Oil Supply. |
Cooling Method: |
Air-cooled Radiator |
Ememergency Stop Protection: |
Yes |
Warranty: |
1 Year |
Printing Of Test Report: |
Yes |
Product Name: |
Hydraulic Pump Test Bench |
Driving Power: |
75-160KW |
Purpose: |
For Repairing Hydraulic Pumps And Motors |
Rotation Speed: |
0-3000 R/min Through Frequency Control |
Pressure Loading: |
31 Mpa --42Mpa |
Flow: |
≦ 500L/min |
Display Mode: |
Digital Display Of Speed, Flow, Pressure, Torque. Oil Supply: Self Priming And Forced Oil Supply. |
Oil Supply:: |
Self Priming And Forced Oil Supply. |
Cooling Method: |
Air-cooled Radiator |
Ememergency Stop Protection: |
Yes |
Warranty: |
1 Year |
Printing Of Test Report: |
Yes |

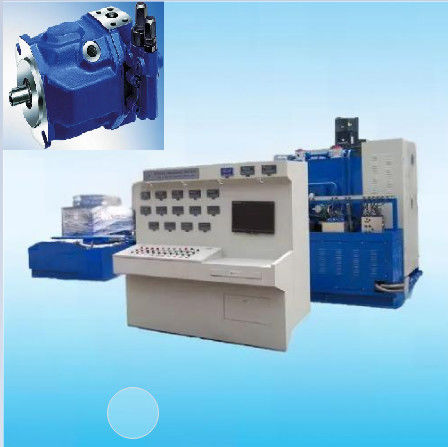

Hydraulic Pump Test Bench
Experience Unparalleled Versatility with Our Advanced Hydraulic Pump Test Bench
Our Hydraulic Pump Test Bench is a cutting-edge solution designed to provide comprehensive and precise testing for a wide range of hydraulic pumps. With its sophisticated features and robust capabilities, it's the perfect tool for ensuring the highest standards of performance and reliability.
Key Features That Set Our Test Bench Apart:
1. Stepless Speed Adjustment: The driving motor's speed is fully adjustable within a range of 0-3000 r/min, allowing for precise control and testing across various operating speeds.
2. High-Precision Filtration: With an oil filtration accuracy of 20 μm, our test bench meets the stringent standards of ISO4406 16/13 or NAS7, ensuring a clean and reliable testing environment.
3. Versatile Testing Applications: Whether it's hydraulic axial piston pumps, piston motors, hydraulic gear pumps, or hydraulic vane pumps, our test bench is capable of testing them all, making it an invaluable asset for diverse hydraulic testing needs.

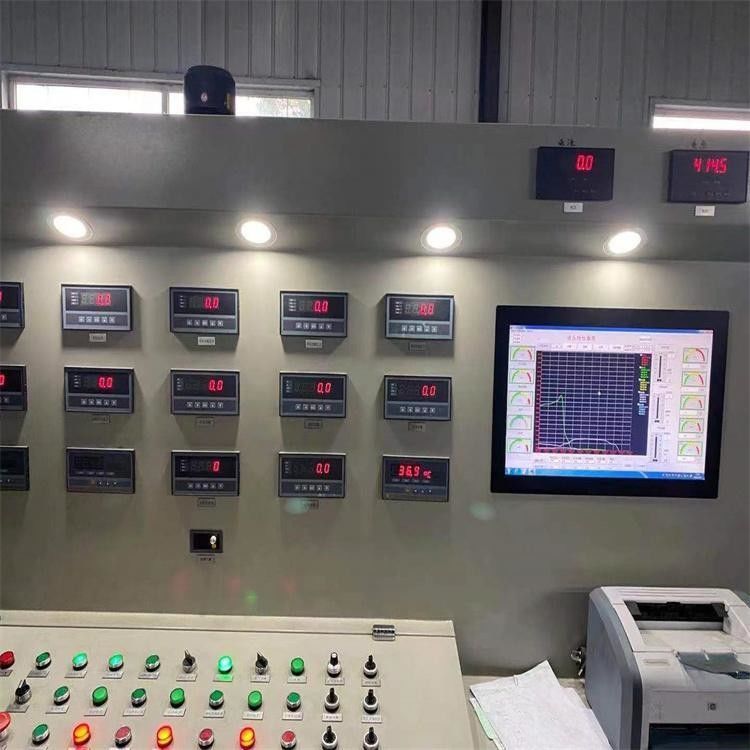

4. Computerized Operation: The integrated computer system allows for advanced data analysis, reporting, and real-time monitoring of test results.
5. Powerful Motor Options: Choose from a selection of electric driving motors – 75kw, 90kw, 110kw, and 160kw – to accommodate the power requirements of different pump types.
6. Wide Pressure Range: Test your pumps under various pressure conditions with a range of 31-42Mpa.
7. CE Certified Safety: Our test bench is CE certified, ensuring compliance with European safety and performance standards.
8. Digital Meters and Gauges: The inclusion of digital meters and gauges provides clear and accurate measurements for detailed analysis.
Why Choose Our Hydraulic Pump Test Bench?
- Unmatched Versatility: The ability to test multiple pump types and adjust the motor speed steplessly makes our test bench an incredibly versatile tool.
- Precision and Accuracy: High filtration accuracy and a wide pressure range ensure that your tests are conducted with precision.
- User-Friendly Interface: The computerized system and digital displays make operating the test bench intuitive and efficient.
- Comprehensive Testing: Our test bench is designed to handle a variety of pumps, providing a one-stop solution for all your testing needs.
Invest in the Future of Hydraulic Testing
With our Hydraulic Pump Test Bench, you're not just acquiring equipment; you're investing in the future of your hydraulic testing capabilities. Contact us today to learn more about how our test bench can enhance your operations and ensure the quality of your hydraulic pumps.
